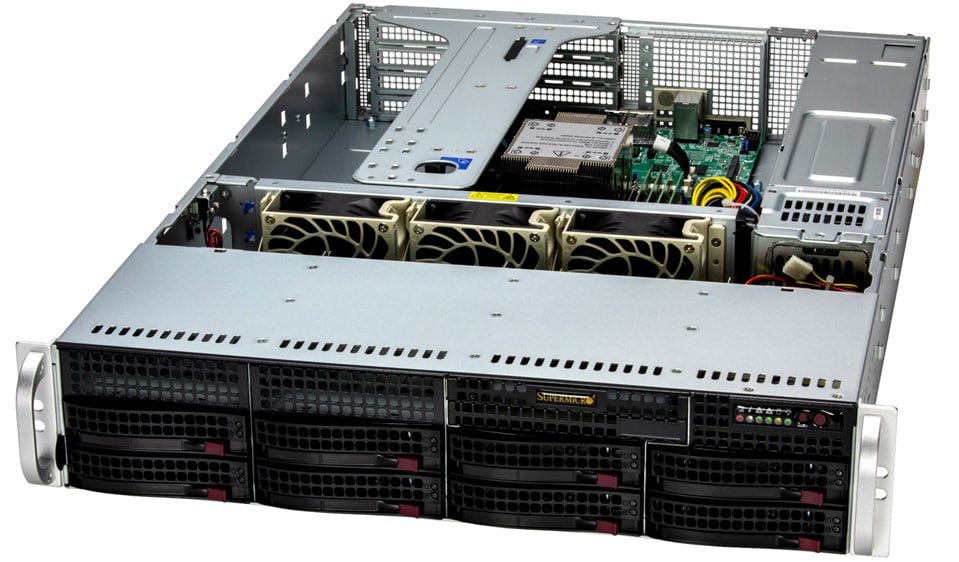

Supermicro Server SYS-522B-WR (Complete System Only )

Key Applications Networking Appliance General Purpose Computing Web Server, Firewall Application Data Center Optimized Entry-Level System for SOHO and SMB Entry GPU server

상품 옵션
판매가
견적 문의

      총 금액

      0 원

      (상품금액 원 + 기본옵션 원 )
      바로구매 장바구니 견적문의



      Product SKUs
      SuperServer SYS-522B-WR
      Motherboard
      Super X14SBW-F
      Processor
      CPU
      Core Count
      • Up to 144C/144T; Up to 108MB Cache
      Note
      • Supports up to 300W TDP CPUs (Air Cooled)
      GPU
      Max GPU Count
      • Up to 1 double-width or 2 single-width GPUs
      CPU-GPU Interconnect
      • PCIe 5.0 x16 CPU-to-GPU Interconnect
      System Memory
      Memory
      • Slot Count: 8 DIMM slots/8 Channels
      • Max Memory (1DPC): Up to 1TB 6400MT/s ECC DDR5 RDIMM
      • View Memory Options
      On-Board Devices
      SATA
      • SATA (6Gbps)
      NVMe
      Chipset
      • System on Chip
      Network Connectivity
      Input / Output
      LAN
      • 2 RJ45 1 GbE LAN ports
      • 1 RJ45 1 GbE Dedicated BMC LAN port (IPMI shared on LAN port 1)
      USB
      • 2 USB 3.2 Gen1 Type-A ports(rear)
      • 2 USB 3.2 Gen1 ports(Header)
      Video
      • 1 VGA port
      Serial
      • 1 COM port(Rear)
      • 1 COM port(Header)
      TPM
      • 1 TPM header
      System BIOS
      BIOS Type
      • AMI 64MB SPI Flash EEPROM
      Management
      Software
      Power configurations
      • ACPI/APM Power Management
      Security
      Hardware
      • Trusted Platform Module (TPM) 2.0
      • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
      Features
      • Cryptographically Signed Firmware
      • Secure Boot
      • Secure Firmware Updates
      • Automatic Firmware Recovery
      • Supply Chain Security: Remote Attestation
      • Runtime BMC Protections
      • System Lockdown
      PC Health Monitoring
      CPU
      • Monitors for CPU Cores, Chipset Voltages, Memory
      • 8 Phase-switching voltage regulator
      FAN
      • Fans with tachometer monitoring
      • Status monitor for speed control
      • Pulse Width Modulated (PWM) fan connectors
      Temperature
      • Monitoring for CPU and chassis environment
      • Thermal Control for fan connectors
      Chassis
      Form Factor
      • 2U Rackmount
      Model
      • CSE-825B2TS-R0WNP
      Dimensions and Weight
      Height
      • 3.5" (89 mm)
      Width
      • 17.2" (437 mm)
      Depth
      • 25.5" (647 mm)
      Package
      • 11" (H) x 26.5" (W) x 34" (D)
      Weight
      • Gross Weight: 59 lbs (26.76 kg)
      • Net Weight: 34 lbs (15.42 kg)
      Available Color
      • Black
      Front Panel
      LED
      • Device Activity
      • LAN 1 Activity
      • LAN 2 Activity
      • Power Failure LED
      • Power status
      • System information
      Buttons
      • Power On/Off
      • System Reset
      Expansion Slots
      PCI-Express (PCIe) Configuration
      • Default
        • 1 PCIe 5.0 x16 FHFL double-width slot
        • 1 PCIe 5.0 x16 FHFL slot
        • 2 PCIe 5.0 x8 LP slots
      • Option A*
        • 1 PCIe 5.0 x16 FHFL double-width slot
        • 2 PCIe 5.0 x8 (in x16) FHFL slots
        • 2 PCIe 5.0 x8 LP slots
      • (*Requires additional parts, please see the optional parts list for details. For more details on PCIe slot configuration options, please refer to the system callout images above.)
      • View AOC Options
      Drive Bays / Storage
      Drive Bays Configuration
      • Default: Total 8 bays
        • 8 front hot-swap 3.5" SATA drive bays
      • Option A: Total 8 bays
        • 4 front hot-swap 2.5" PCIe 5.0 x4 NVMe* drive bays
        • 4 front hot-swap 3.5"/2.5" SATA drive bays
      • Option B: Total 8 bays
        • 8 front hot-swap 3.5"/2.5" SAS* drive bays
      • (*NVMe/SAS support may require additional storage controller and/or cables, please see the optional parts list for details)
      • View NVMe Options
      • View Drive Options
      M.2
      • 2 M.2 PCIe 5.0 x2 NVMe slots (M-key 2280/22110; VROC required for RAID)
      • View M.2 Options
      Peripheral Bays
      • 1 slim peripheral bay
      System Cooling
      Fans
      • 3 heavy duty PWM 80x80x38cm Fan(s)
      Air Shroud
      • 1 CPU Air Shroud
      Power Supply
      2x 1000W
      2x 1000W Redundant (1 + 1) Titanium Level (96%) power supplies
      Dimension (WxHxL)76 x 40 x 336 mm
      Input800W: 100-127Vac / 50-60Hz
      1000W: 200-240Vdc / 50-60Hz
      1000W: 200-240Vac / 50-60Hz
      +12VMax: 66.7A / Min: 0A (100Vac-127Vac)
      Max: 83A / Min: 0A (200Vdc-240Vdc)
      Max: 83A / Min: 0A (200Vac-240Vac)
      5V SBMax: 4A / Min: 0A
      Output TypeBackplanes (gold finger)
      Operating Environment
      Environmental Spec.
      • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
      • Non-operating Temperature: -30°C to 60°C (-22°F to 140°F)
      • Operating Relative Humidity: 8% to 80% (non-condensing)
      • Non-operating Relative Humidity: 8% to 90% (non-condensing)
